            The Fence Pipe produced at our plant includes Residential, JT-15, JT-20, JT-40 and Sch-40 Hot Dip Galvanized conforming to ASTM A-53 (F-1083) Standards.

 The Sizes and packing information is given as under:

 Residential Tubing:

Fence Size  Actual OD

 Wall thickness

 Packing per  Bundle

wt/foot
 1-3/8"  1.315"  0.055"  91  0.074
 1-5/8"  1.660"  0.055"  61  0.943

 1-3/8"  1.315"  0.065"  91  0.868
 1-5/8"  1.660"  0.065"  61  1.107
 1-7/8"  1.900"  0.065"  61  1.274
 2-3/8"  2.375"  0.065"  37  1.604



  JT-15

Fence Size  Actual OD  Wall thickness  Packing per  Bundle wt/foot
 1-3/8"  1.315"  0.072"  91  0.956
 1-5/8"  1.660"  0.072"  61  1.221
 1-7/8"  1.900"  0.072"  61  1.406
 2-3/8"  2.375"  0.076"  37  1.866



  JT- 20

Fence Size  Actual OD  Wall thickness  Packing per  Bundle wt/foot
 1-3/8"  1.315"  0.080"  91  1.055
 1-5/8"  1.660"  0.085"  61  1.430
 1-7/8"  1.900"  0.090"  61  1.740
 2-3/8"  2.375"  0.095"  37  2.313
 2-7/8"  2.875"  0.110"  19  3.248



  JT- 40

Fence Size  Actual OD  Wall thickness  Packing per  Bundle wt/foot
 1-3/8"  1.315"  0.104"  91  1.35
 1-5/8"  1.660"  0.111"  61  1.84
 1-7/8"  1.900"  0.120"  61  2.28
 2-3/8"  2.375"  0.130"  37  3.11
 2-7/8"  2.875"  0.160"  19  4.64
 4"  4.000"  0.160"  12  6.56



SCH-40 HOT DIP GALVANIZED (After Fabrication)

Conforming to ASTM  F-1083 specifications. (Made in USA)
Fence Size  Actual OD  Wall thickness  Packing per  Bundle wt/foot
 1-3/8"  1.315"  0.133"

61

  1.055
 1-5/8"  1.660"  0.140"

42

  2.27
 1-7/8"  1.900"  0.145" 36  2.72
 2-3/8"  2.375"  0.154"  26  3.65
 2-7/8"  2.875"  0.203"  18  5.79
* 4"  4.000"  0.226" 12  9.11
* 6-5/8"  6.625"  0.280" 7 18.97
* 8-5/8"  8.625"  0.322" 3  28.55

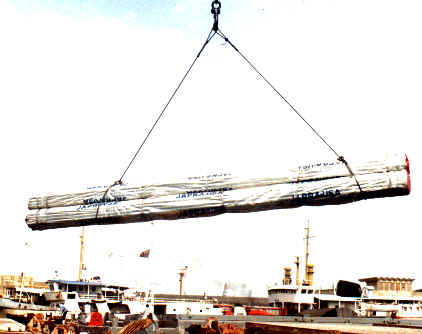

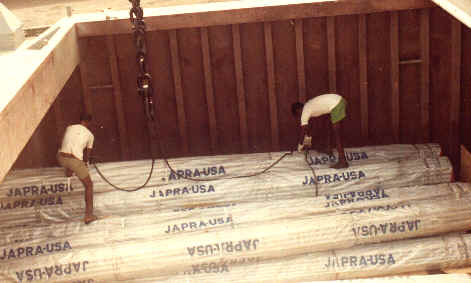

Import Pipe

At Japra Group, 'Import pipe' is available on Direct Mill (Futures) basis as well as from Stock at our warehouses.

Fence Tubing in 0.065" and 0.080" in addition to Structural and Sch-40 are available. Special sizes, squares, and rectangle tubes are supplied upon request.







Our associated foreign mills are equipped to produce High Strength,

 Cold Formed, Hot Dip Galvanized Pipe. Pipe coating is chromate converted and wrapped in polypropylene sheeting to protect the luster during transit overseas. Pipe is imported and distributed by our Distribution Division.
